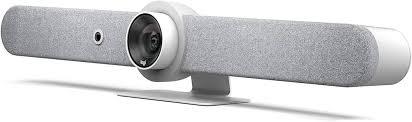

Logitech Rally Bar All In One Conference Webcam, Video Bar for Medium Rooms, 10/100/1G Ethernet, WiFi 802.11a, 128 bit AES Security, Pan/Tilt/Zoom Camera, White, UK-ME | 960-001324
SKU:
Warranty : Brand:
Couldn't load pickup availability
Order on WhatsApp
24/7 Customer Support
30 Days Return
Warranty
Express Delivery
About the Product
Rally Bar delivers a powerful all-in-one video conferencing experience, featuring brilliant optics, automated PTZ, and high performance audio for midsize meeting rooms. With Rally Bar, video meetings can be just as natural and productive as face-to-face collaboration.
ALL-IN-ONE VIDEO BAR FOR MEDIUM ROOMS
Logitech Rally Bar sets a new standard for video meetings in midsize rooms, with expansion options for larger groups and settings.
It’s remarkably simple to use, manage, and deploy at scale, delivering cinema-quality video and audio in a sleek, all-in-one form factor. Plug and play Rally Bar with any PC or Mac, or leverage the built-in compute to run video conferencing applications directly on the device.
Rally Bar features a multi-element lens assembly, powerful low distortion speakers, and an advanced mic system to create meeting experiences that sound as good as they look. A dedicated AI camera amplifies RightSight auto-framing and delivers insights about room usage directly to the Logitech Sync dashboard. Upgrade your video collaboration with Rally Bar
USB Plug and Play
Easily connects to virtually any PC or Mac®, with no additional software required.
Appliance Mode
Built-in compute allows you to run supported video conferencing applications such as Zoom directly on the device.
All-in-One Design
Sleek, minimal footprint expedites setup and reduces clutter.
Streamlined, Flexible Installs
Confidently deploy at scale with smart cable management and multiple mounting options.
specifications
Dimensions
Technical Specifications
Certifications & Compatibility
General Specifications
- Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management: Logitech Sync
- Displays Supported: 2
- Display Resolution: Up to 1080p
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
- Rally Bar No-Radio: All radio frequency technology and connectivity such as Wi-Fi and Bluetooth has been removed from this model.
Camera
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 15X HD zoom (5X optical and 3X digital)
- Diagonal Field of View: 90°
- Horizontal Field of View: 82.1°
- Vertical Field of View: 52.2°
- Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
Speakers
- Drivers: 2x 70 mm / 2.7 in
- Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Rated Power: 8W
- THD: 1kHz < 2% at 1W
- Speaker Sampling Rate: 48 kHz
- Impedance: 4 Ohms
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: >-36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48KHz
- Pickup Range: Up to 23 ft (7m)
- Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI based de-noising algorithm
- Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
- RightLight: Renders natural skin tones for each participant
- RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
- RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
- Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
Interfaces
- HDMI Out: 2 (up to 1080p)
- HDMI In: 1
- USB: 3x Type A, 1x Type C
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac (Rally Bar No-Radio does not support WiFi connectivity)
- External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
- Remote Control: Bluetooth® Low Energy (Rally Bar No-Radio does not have a remote control and/or support Bluetooth)
Power & Cables
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 4.74A
- Power Supply Dimensions: 5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm)
- DC Cable: 5 ft (1.5 m)
- AC Cable: 3.28 ft (1 m)
- HDMI 1.4 Cable: 6.5 ft (2 m)
- USB A to USB C 3.0 Cable: 7.2 ft (2.2 m)
Environmental
- Operating Temperature: 0 to 40°C
- Storage Temperature: -40 to 70 °C
- Humidity: 10 to 95%
- BTU/hr: 57 idle, 64 in meeting
Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
Accessories
- Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
- Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
- Connectivity: Logitech Strong USB Cable [32.81 ft (10 m), 65.6 ft (25 m), 147.64 ft (45 m)]
- Touch Controller: Logitech Tap and Tap IP 3
